Stainless Steel Infill Panels

HDI stainless steel infill panels are available as either perforated or woven stainless steel. Both types are framed with rectangular tube with defined angular edges. Providing frame with square, non-rounded edges provides a much more aesthetically pleasing panel maintaining the overall design integrity of the railing system. These types of infill panels are extremely robust and durable and suitable for virtually any application.

Manufactured, following premium quality specifications including:

  • High quality stainless steel
  • AISI 304 or 316 surface preparation
  • 240 grain brush finish that is corrosion resistant, for interior and exterior applications.

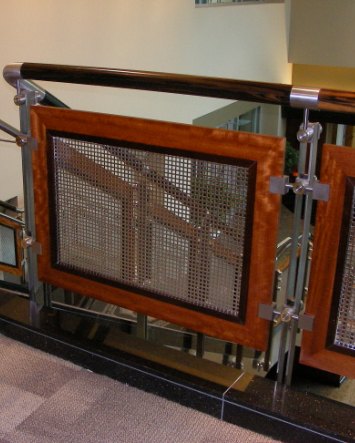

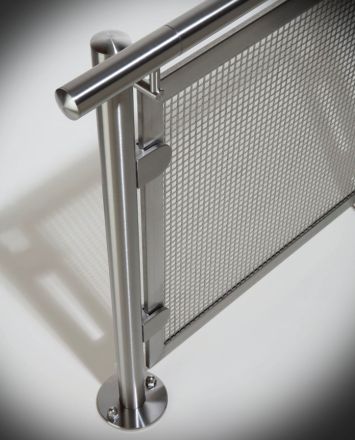

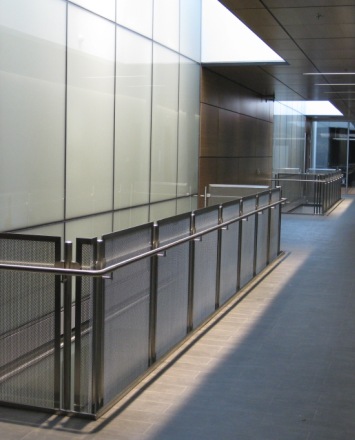

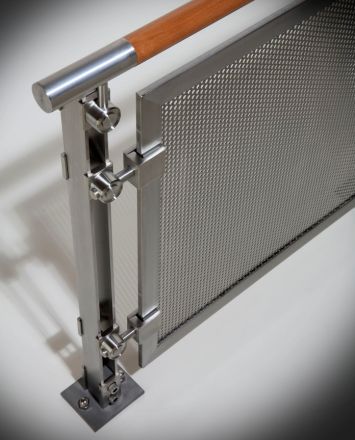

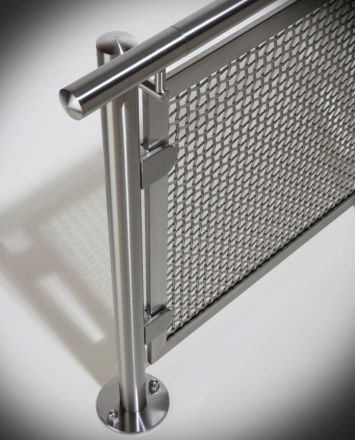

Perforated Infill Panels

Perforated infill is 16 gauge with standard 3/8″ rectangular holes on 1/2″ centers. Other designs, shapes and sizes are available on request.

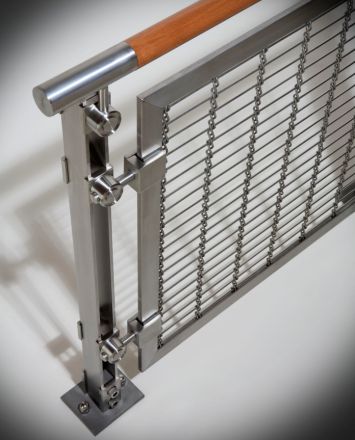

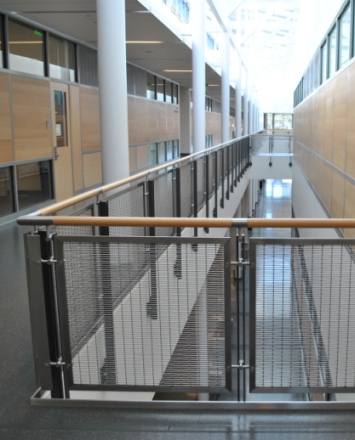

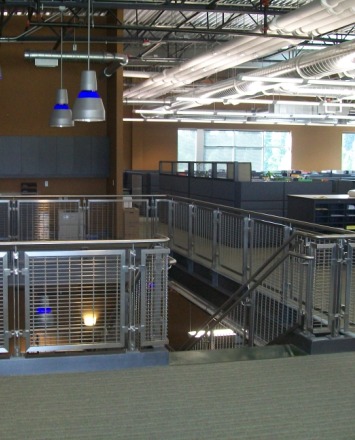

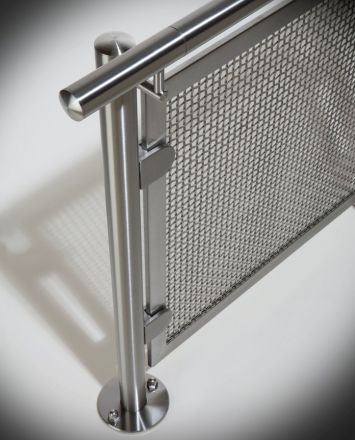

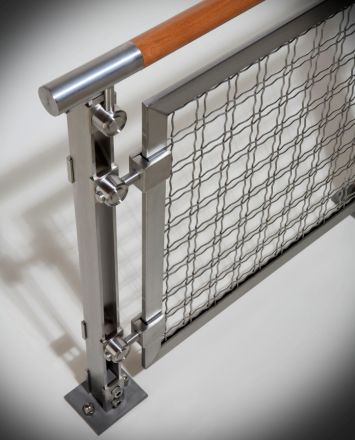

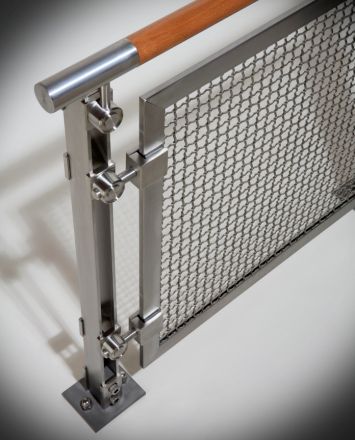

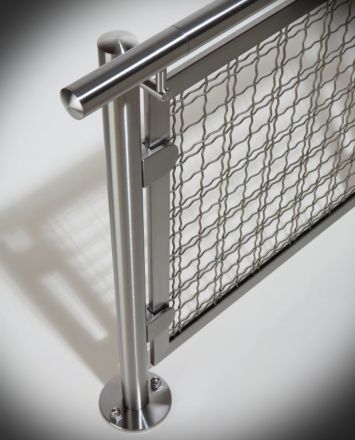

Woven Stainless Steel Infill Panels

Woven stainless steel is available in a variety of designs. Infill material is inserted into and welded to frame. Frame material is 1/2″ thick by 1-1/2″ wide.

Request a quote for infill panels.
